UAC麦克风类特定音频控制接口描述符
2021-07-23
657
0
UAC的类特定音频控制接口描述符又叫类特定音频控制接口头描述符,包含了UAC音频控制各终端,单元的描述符信息。

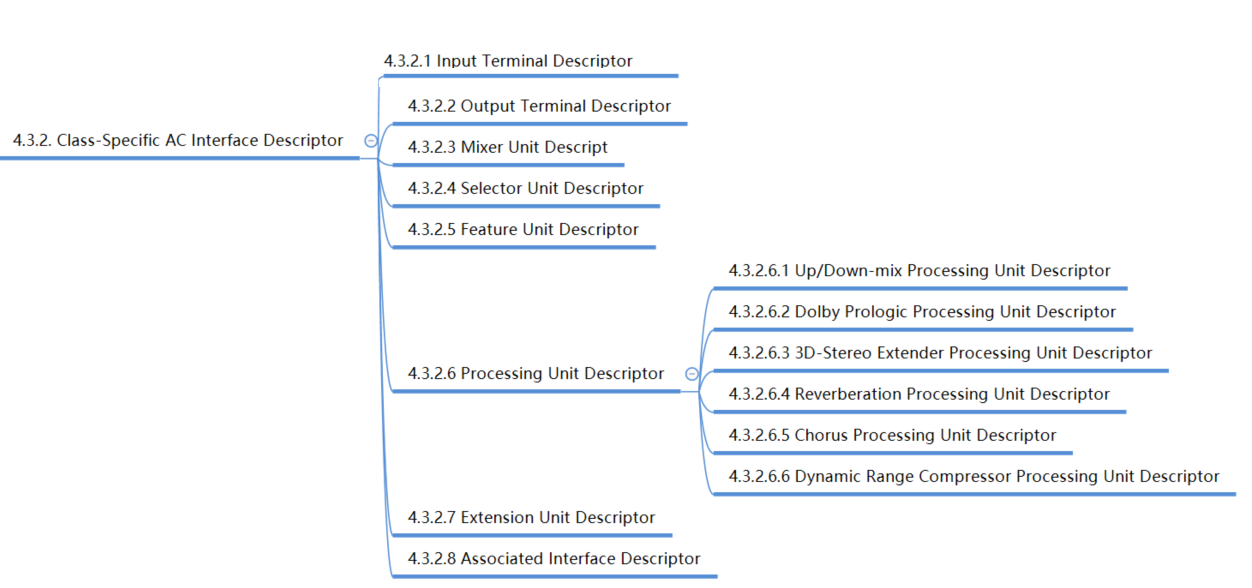

在UAC规范中,其包含的描述符有:
关于类特定音频控制接口描述符可详见本站:http://www.usbzh.com/article/detail-222.html

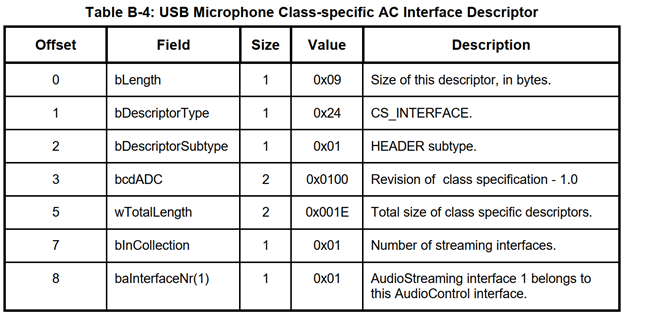

由于该UAC麦克风是基于UAC1.0开发的,所以其类特定音频控制接口描述符的参数如下:
#define DECLARE_UAC_AC_HEADER_DESCRIPTOR(n)\ struct uac1_ac_header_descriptor_## n {\
__u8 bLength;\
__u8 bDescriptorType;\
__u8 bDescriptorSubtype;\
__le16 bcdADC;\
__le16 wTotalLength;\
__u8 bInCollection;\
__u8 baInterfaceNr[n];\
}
__attribute__((packed))
/* B.3.2 Class-Specific AC Interface Descriptor */
static struct uac1_ac_header_descriptor_1 uac1_header_desc = {
.bLength = UAC_DT_AC_HEADER_LENGTH,
.bDescriptorType = USB_DT_CS_INTERFACE,
.bDescriptorSubtype = UAC_HEADER,
.bcdADC = __constant_cpu_to_le16(0x0100),
.wTotalLength = __constant_cpu_to_le16(UAC_DT_TOTAL_LENGTH),
.bInCollection = F_AUDIO_NUM_INTERFACES,
.baInterfaceNr = { /* Interface number of the first AudioStream interface */
[0] = 1,
}
};
使用Free Device Monitoring Studio 对该设备的类特定音频控制接口描述符抓取显示如下:
- descriptors[2] = “Class-Specific Interface Descriptor”
- bLength = 9
- bDescriptorType = CS_INTERFACE (36)
- bDescriptorSubtype = 1
- ac_interface =
- header =
- bcdADC = 256
- bCategory = 39
- wTotalLength = 256
- controls =
- header =
- LatencyControl = 1
- Reserved = 0
- bmControls = 00000001
